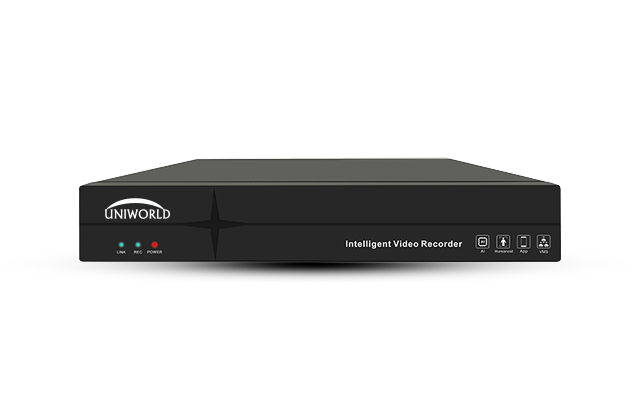

UNIWORLD 16CH 4K IVR
Model: UV-IVR Series
Experience seamless surveillance performance with the advanced 16-channel 4K NVR from UNIWORLD, built on a powerful embedded Linux system with pure hardware decoding.
Video Input & Decoding:
Supports 16CH IPC input (up to 8MP per channel)
Decoding support: Smart265 / H.265 / H.264
16CH real-time preview, 4CH 5MP synchronous playback
HDMI & VGA output up to 4K (3840×2160)
Performance & Compatibility:
Incoming bandwidth up to 80 Mbps
Video recording resolution: 5MP + 51080P, or 5MP + 9D1
Compatible with 720P, 960P, 1080P, 3MP, 4MP, 5MP, and 4K IP cameras
Supports ONVIF, RTSP, GB28181, and private protocols
Storage & Backup:
1 SATA port, supports up to 16TB HDD
USB backup (U disk, mobile hard disk)
Supports ANR (Automatic Network Replenishment) for uninterrupted recording
Smart Features & Alarms:
Motion detection, Line-crossing, Human/Vehicle detection, Loitering, Area intrusion, Illegal parking
Alarm recording with snapshot and email notifications
Audio: G.711, HDMI audio out, 3.5mm audio I/O
Remote Access & UI:
IMS client and mobile app support (fast preview, playback)
Web and cloud access with P2P, DDNS, UPNP
RTMP support for streaming
New optimized UI with fast boot and smooth operation
Build & Connectivity:
1 RJ45 Ethernet port (10/100M adaptive)
2 USB2.0 ports (rear)
Compact Size: 210×255×42mm
Power: DC 12V/2A (≤2W without HDD)
Operating Temperature: -10°C to +55°C
