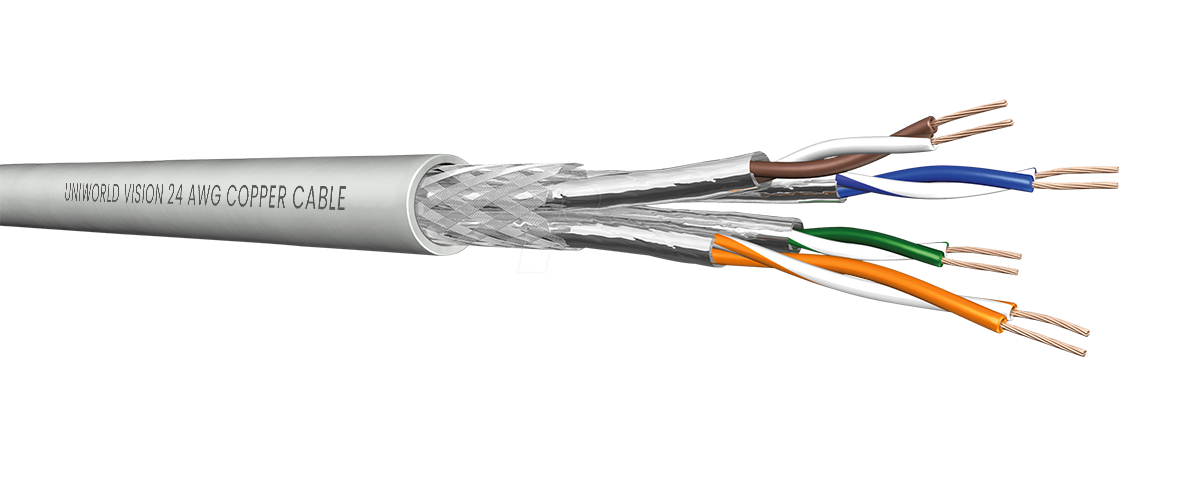

24 - AWG COPPER CABLE 305 - METER

UV-CAB-COP305M

24 - AWG COPPER CABLE 305 - METER

Rating:

Rating:

Product Specifications:

1/0.510 MM X 4 PAIR CAT6 UTP CCA PVC JACKET NETWORKING CABLE

  • Operating Temperature: -15°C to 70°C
  • Conductor Size: 0.510 ± 0.010 mm
  • Conductor Material: CCA (Copper-Clad Aluminum)
  • Number of Strands: 1
  • Insulation Thickness: 0.20 mm (Nominal)
  • Insulation Diameter: 0.85 ± 0.10 mm
  • Outer Sheath Material: PVC (Polyvinyl Chloride)
  • Outer Sheath Thickness: 0.85 ± 0.10 mm
  • Outer Sheath Diameter: 5.80 ± 0.30 mm
  • Color: Grey
  • Conductor Resistance @ 20°C: N/A
  • Resistance DC Unbalance: N/A
  • Resistance DC Unbalance: >367.0m/km @ 500 VDC
  • Dielectric Strength: 0.700 KV AC for 1 minute (Withstood)
  • Spark Test: 1.0 KV AC for 0.15 Second (Withstood)
  • Capacitance to 1 KHz (Approx): 5.6nF/100m
  • Normal Velocity of Propagation: 69%
  • Impedance: 100 ± 15%
  • Delay Skew: < 45 ns/100m
Price: RS 0
RS 0.00
Discount: RS 0
Quantity:
- +
DATASHEET
Quantity:
- +

Specification . Request For Information
