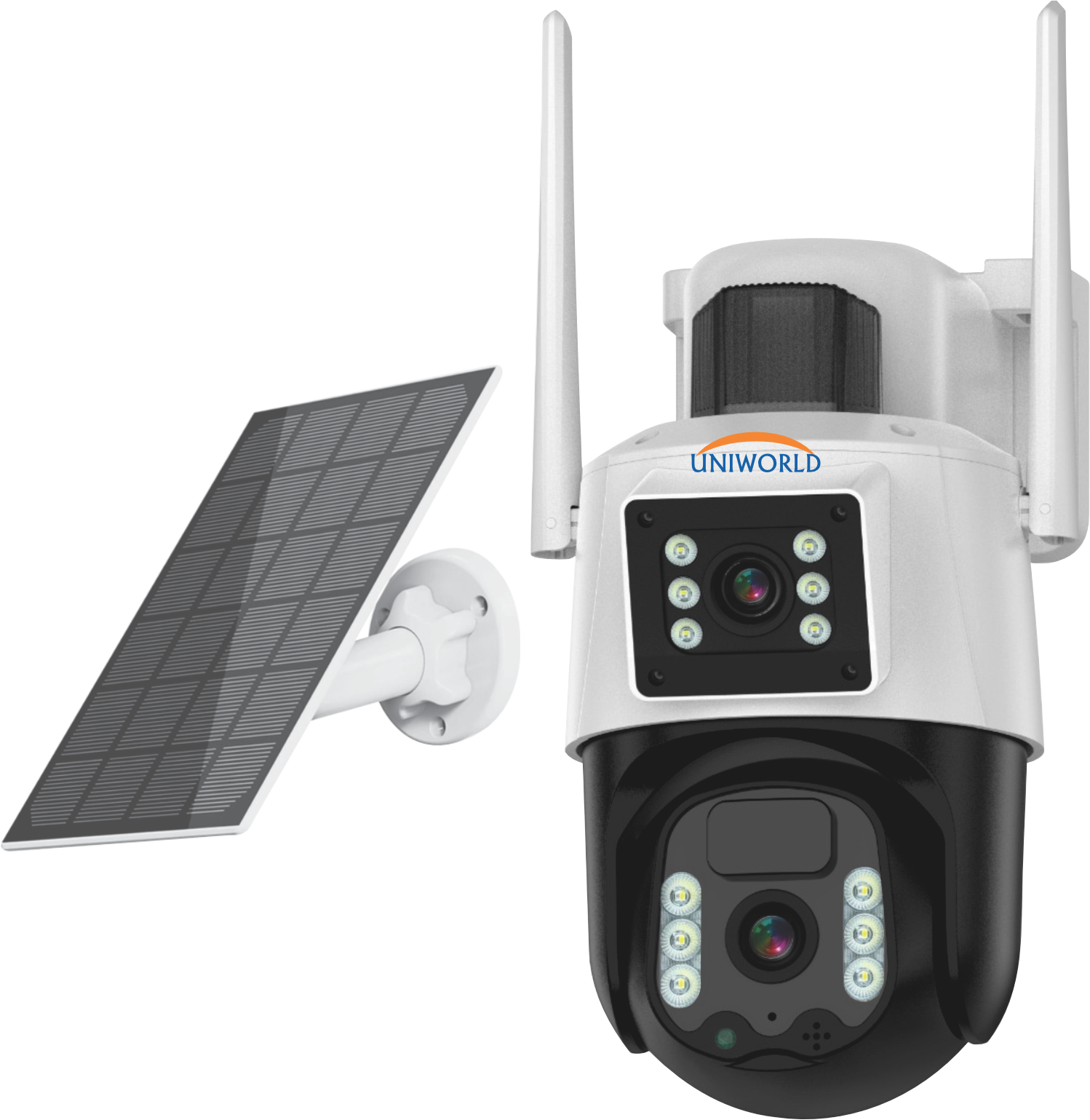

3+3 MP Smart 4G Linkage Pan-Tilt Camera

UV-4GC-TDSLR-303SL-CA

3+3 MP Smart 4G Linkage Pan-Tilt Camera

Rating:

Rating:

  • Dual 3MP Cameras: One for monitoring, one for Pan-Tilt.
  • Fixed Lenses: 4mm + 4mm.
  • Pan & Tilt Range: 270° horizontal, 90° vertical.
  • Dual Monitoring: Ensures wider coverage and security.
  • Two-Way Audio: High-sensitivity mic and speaker.
  • AI Motion Detection: Human and motion alerts.
  • Digital Zoom: Supports 10X zoom.
  • Preset Locations: Can set up to 6 points.
  • Storage Options: Micro SD (up to 256GB) & Cloud (optional).
  • Night Vision: Supports both IR and full-color modes.
  • Remote Access: Via mobile app/PC software (TrueCloud).
  • 4G Connectivity: QR code setup with mobile/PC.
  • Solar-Powered: Built-in 15000mAh battery + 7W solar panel.
Price: RS 0
RS 0.00
Discount: RS 0
Quantity:
- +
DATASHEET
Quantity:
- +

Specification . Request For Information

CategorySpecifications
Product CodeUV-4GC-TDSLR-303SL-CA
Image Sensor1/2.8” 3MP+3MP HD CMOS Dual Sensor
Resolution3MP + 3MP (2304 x 2592)
Lens4mm + 4mm Fixed Lens
IR LEDFixed Camera: 2 Array, PT Camera: 2 Array
IR Distance30 Meters
White LEDFixed Camera: 4 White, PT Camera: 4 White
White LED Distance30 Meters
Video Compression StandardH.264/H.265/H.265+
Video StreamingMain Stream: 2304 x 2592 / 15 fps Sub Stream: 800 x 896 / 15 fps
Audio Input/OutputTwo-way Audio, Built-in Microphone and Speaker
Audio Compression StandardAAC/G711A
SlotsNano SIM Card Slot & Micro SD Card Slot
Min IlluminationColor: 0.01 Lux, Black & White: 0.001 Lux
DNR3D Digital Noise Reduction
White BalanceAuto
WDRD-WDR
Mirror/FlipOn / Off
Electronic ShutterAuto
AI FeaturesMotion Detection, Human Detection
MonitoringAndroid, iOS, Windows (TrueCloud)
StorageSupports Micro SD Card up to 256GB & Cloud Storage (Optional)
Connection Mode4G Network
Light ModeLED Flash: 4G Network Not Connected LED Continuous ON: 4G Network Connected
ButtonReset Button
BatteryBuilt-in 15600mAh Rechargeable Battery
Solar Panel7 Watts
Power InputDC: 5V/2A (Type-C)
Power Consumption≤ 15W
Thunder PreventionStandard IEC61000-4-5
Working Temperature / Humidity-10° C to 50° C / 30% to 80% RH
Storage Temperature / Humidity-20° C to 60° C / 20% to 90% RH
Housing TypePlastic (IP66) Housing
Dimensions (W x H x L)130mm x 310mm x 185mm
Weight833g (Gross), - g (Net)
