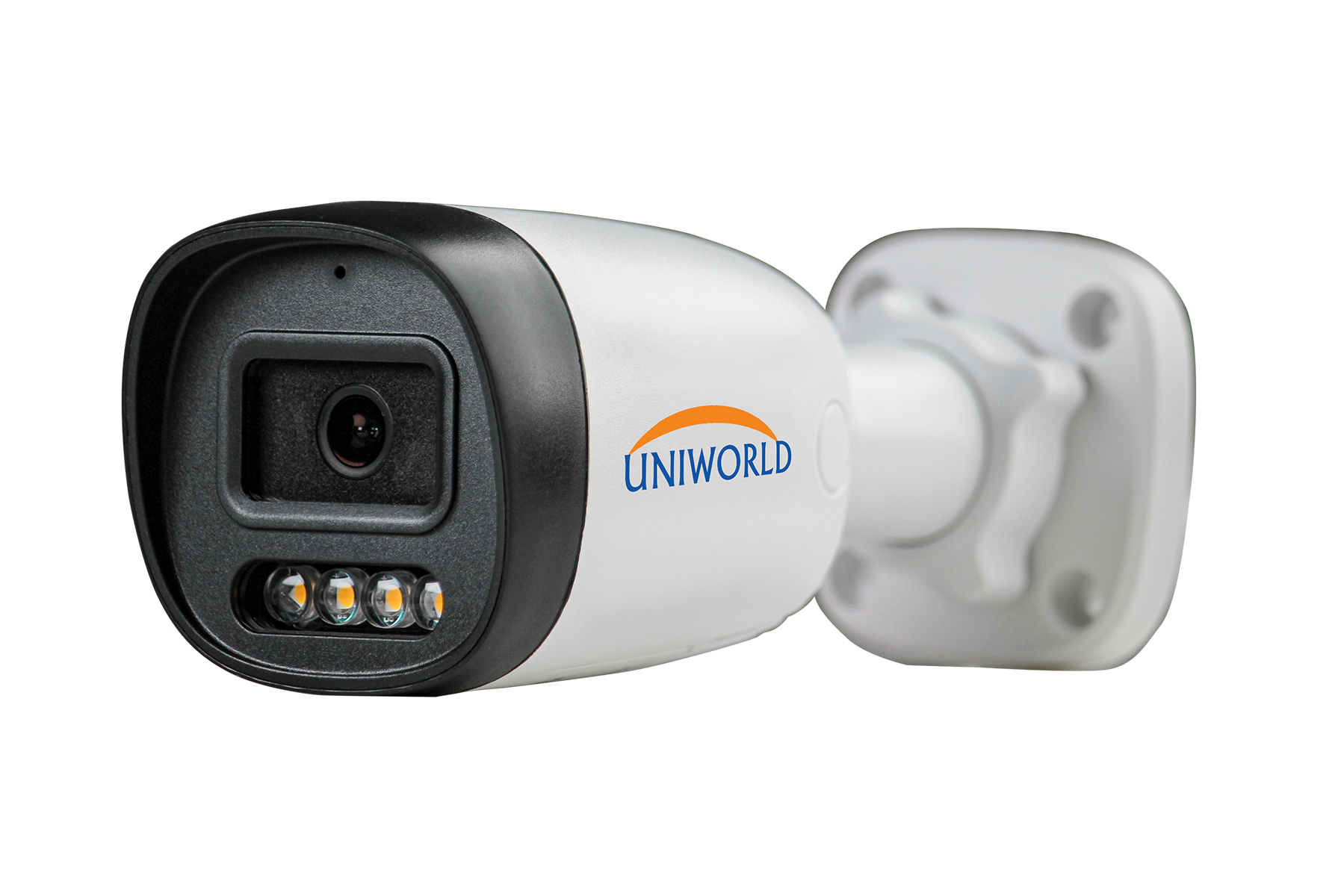

3MP IP BULLET CAMERA -20m

UV-IPC-TA30T2-PCA

3MP IP BULLET CAMERA -20m

Rating:

Rating:

FeatureSpecification
Resolution3MP (2304×1296 @20fps), 2MP (1920×1080 @25fps), 720P (1920×720 @25fps) optional
CompressionS.265/H.265/H.264
Max Frame RateNTSC 2MP @30fps
Human DetectionBuilt-in humanoid detection algorithm, detects up to 5 people simultaneously
Detection Accuracy≥99% (Humanoid size: 40×40 pixels or above)
Smart IRAvoids infrared overexposure at night
Lighting ModesDual light, Warm Light, Infrared CDS, Sensor Trigger
Two-way AudioSupports intercom and human alert voice broadcast
WDR & DNRDigital WDR & 3D DNR support
PoE SupportOptional
Security & EncryptionHTTPS encryption, AES encryption, RTSP verification
Onvif SupportCompatible with third-party systems
Alarm & NotificationsMotion detection, privacy mask (up to 4 areas), network failure, IP conflict, illegal access alarms, email alerts

Price: RS 0
RS 0.00
Discount: RS 0
Quantity:
- +
DATASHEET
Quantity:
- +

Specification . Request For Information


Feature Specification
Resolution 3MP (2304×1296 @20fps), 2MP (1920×1080 @25fps), 720P (1920×720 @25fps) optional
Compression S.265/H.265/H.264
Max Frame Rate NTSC 2MP @30fps
Human Detection Built-in humanoid detection algorithm, detects up to 5 people simultaneously
Detection Accuracy ≥99% (Humanoid size: 40×40 pixels or above)
Smart IR Avoids infrared overexposure at night
Lighting Modes Dual light, Warm Light, Infrared CDS, Sensor Trigger
Two-way Audio Supports intercom and human alert voice broadcast
WDR & DNR Digital WDR & 3D DNR support
PoE Support Optional
Security & Encryption HTTPS encryption, AES encryption, RTSP verification
Onvif Support Compatible with third-party systems
Alarm & Notifications Motion detection, privacy mask (up to 4 areas), network failure, IP conflict, illegal access alarms, email alerts

Camera Specifications:

Feature Specification
Chipset [Insert Chipset Model]
Sensor 1/3" 3MP low illumination CMOS sensor
Lens Fixed & varifocal lens support
D&N Mode ICR switch (Auto/Color/B&W/CDS trigger/Customized time)
IR LED Control IR/Warm/Dual light, adjustable brightness (0-100%)
WDR Settings Off/Low/Middle/High
3D DNR Off/Low/Middle/High
Defog Off/Low/Middle/High
Mirror Mode Off/Horizontal/Vertical/180° Flip
Image Settings Brightness, Contrast, Sharpness, Saturation, Chroma

Detection Features:

Feature Specification
Humanoid Detection Detects people with any posture (half body, head, hand, shoulder)
Detection Frame 5fps/s
Fault Detection Ratio ≤2%
Detection Area Customizable (default full-screen)
Trigger Method Video trigger

Audio & Video Encoding:

Feature Specification
Video Standard S.265/H.265/H.264
Max Resolution 3MP (2304×1296)
Encoding Streams Main Stream: 3MP (2048×1536 @20fps), 2MP (1920×1080 @25fps), NTSC 2MP (1920×1080 @30fps)
Sub-Stream D1 (720×576), VGA (640×480), Q720P (640×360), CIF (352×288), QVGA (320×240)
Video Bitrate 160Kbps-4000Kbps (fixed & variable code rate)
Audio Encoding G.711u/G.711A (64Kbps)

Network & Security:

Feature Specification
Network Protocols TCP/IP, UDP, HTTP, HTTPS, DHCP, RTSP, DDNS, NTP, PPPoE, UPNP, SMTP
Connection Protocols Slink, Onvif, GB28181 (optional)
Motion Detection Customizable detection area with multi-level sensitivity
Privacy Mask Supports 4 zones
Alarm Methods Snapshot, email alerts

Ports & Connectivity:

Feature Specification
Network Port RJ45 (10M/100M self-adaptive)
Audio MIC Input/Output

General Specifications:

Feature Specification
Power Supply DC12V/PoE (optional)
Size [Insert Dimensions]
Operating Temperature -15°C to 50°C
Operating Humidity 0% - 90%
