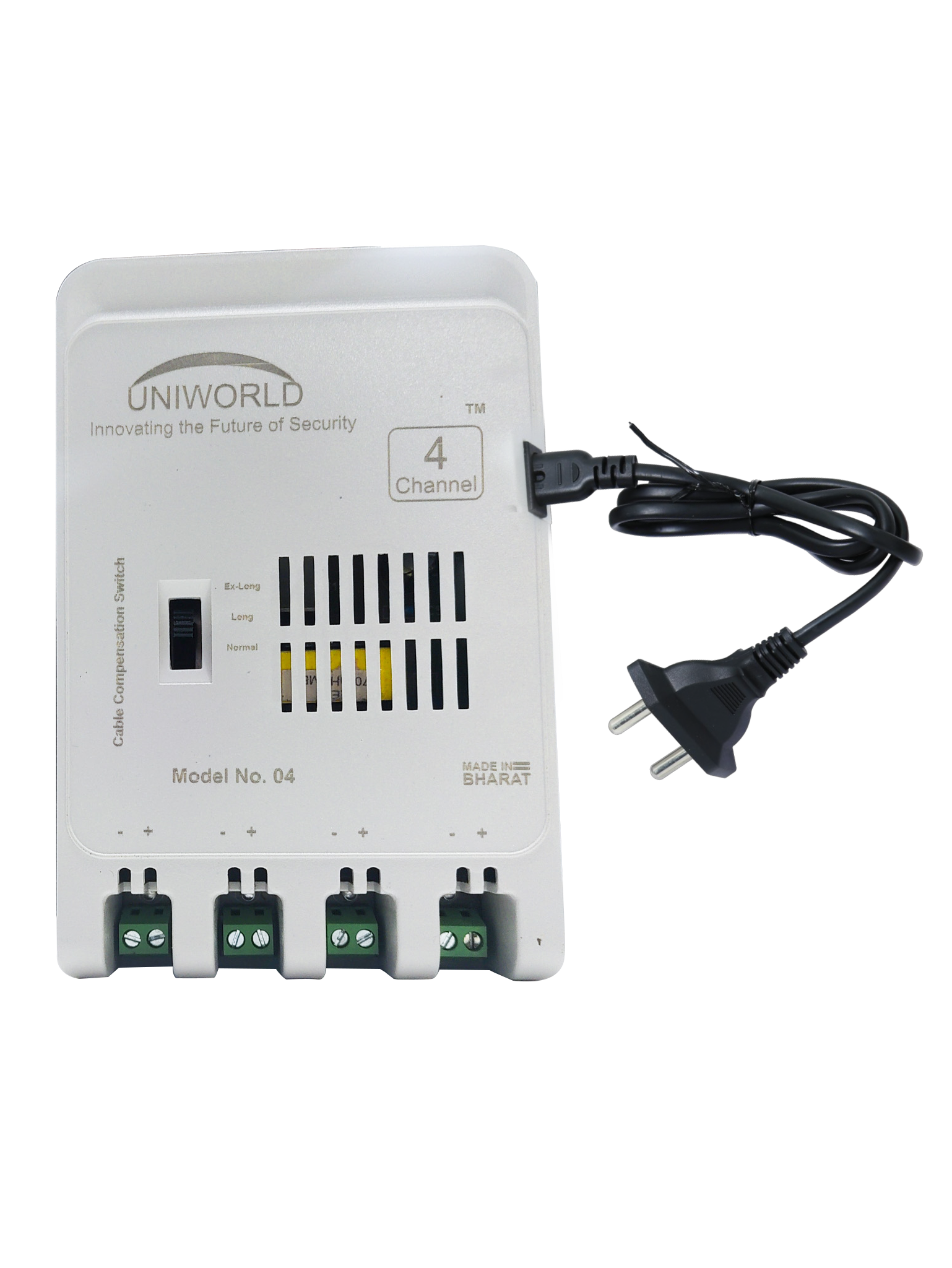

4 ch multi Output

UV-PS-401P

4 ch multi Output

Rating:

Rating:

SPECIFICATION
  • - Input Voltage: 150VAC - 240VAC
  • - Output Connector: Terminal Block Type
  • - Output Voltage: 12V DC
  • - Current Range: 0-1A per channel
  • - Voltage Adjustment Range: 12V DC - 15V DC
  • - Ripple & Noise (max.): <200mV
  • - Rated Power: 48W
  • - Voltage Tolerance: ±10%
  • - Line Regulation: <3% at 150VAC-240VAC
  • - Load Regulation: <10% at 150VAC-240VAC
  • - Setup Rise Time: 30ms max @ rated load (output voltage from 10% to 90%)
  • - Hold-Up Time (Typ.): 30ms max @ full load & 230VAC input turn off
  • - Temperature Coefficient: Max 75°C
  • - Start Time: 30ms max @ rated load (output voltage from 10% to 90%)
  • - Frequency Range: 50Hz-60Hz
  • - Efficiency (Typ.): 70%
Price: RS 0
RS 0.00
Discount: RS 0
Quantity:
- +
DATASHEET
Quantity:
- +

Specification . Request For Information
