4 Ch Power Supply Metal || Uniworld Innovating the Future of Security

UV-PS-104M-5AMP

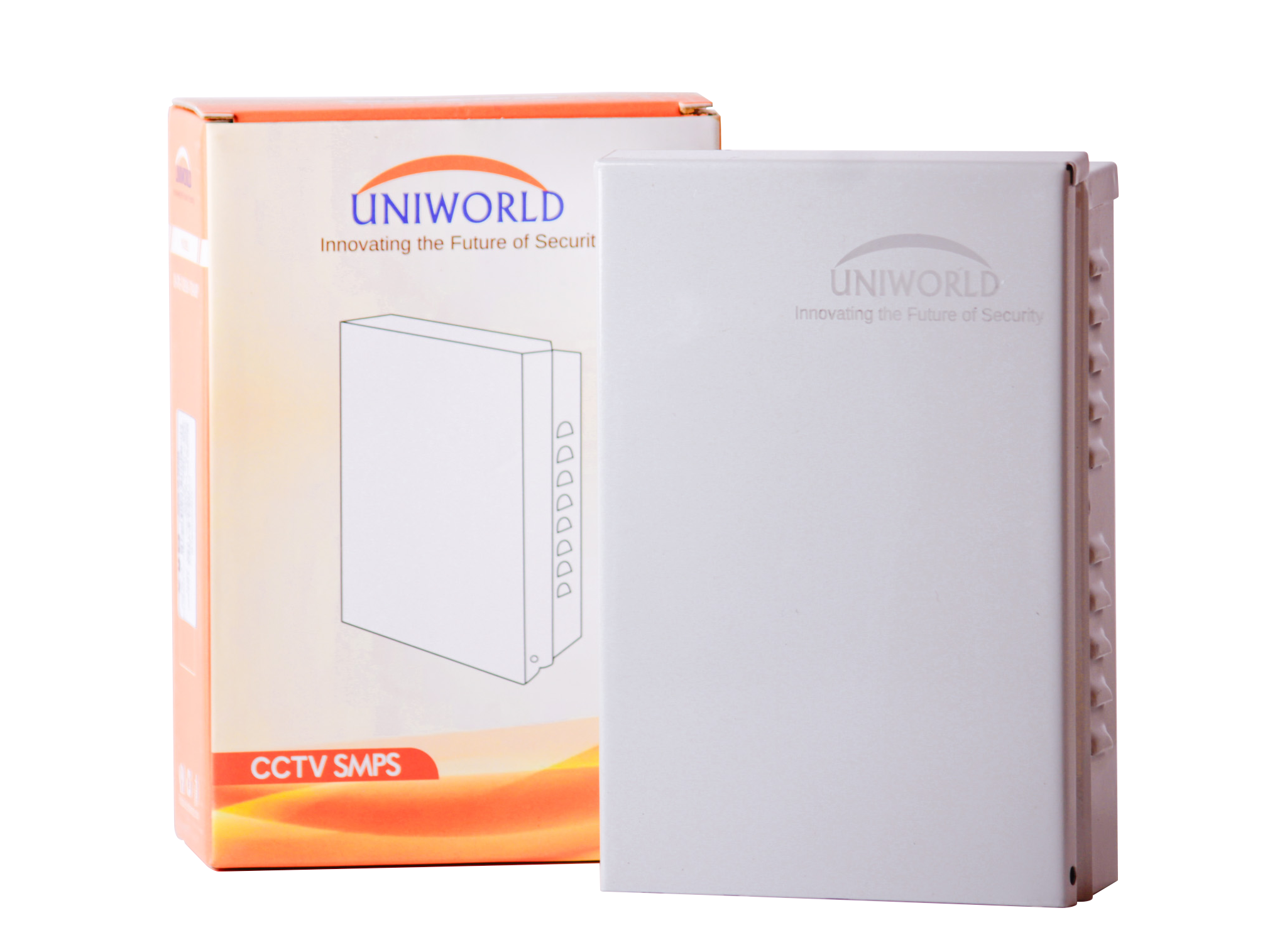

4 Ch Power Supply Metal

Rating:

SPECIFICATION

- Input Voltage: 150VAC - 240VAC
- Output Connector: Terminal Block Type
- Output Voltage: 12V DC
- Current Range: 0-1A per channel
- Voltage Adjustment Range: 12V DC - 15V DC
- Ripple & Noise (max.): <200mV
- Rated Power: 48W
- Voltage Tolerance: ±10%
- Line Regulation: <3% at 150VAC-240VAC
- Load Regulation: <10% at 150VAC-240VAC
- Setup Rise Time: 30ms max @ rated load (output voltage from 10% to 90%)
- Hold-Up Time (Typ.): 30ms max @ full load & 230VAC input turn off
- Temperature Coefficient: Max 75°C
- Start Time: 30ms max @ rated load (output voltage from 10% to 90%)
- Frequency Range: 50Hz-60Hz
- Efficiency (Typ.): 70%

Price: RS 0

RS 0.00

Discount: RS 0

Quantity:

- +

DATASHEET

Quantity:

- +

SPECIFICATION

- Input Voltage: 150VAC - 240VAC
- Output Connector: Terminal Block Type
- Output Voltage: 12V DC
- Current Range: 0-1A per channel
- Voltage Adjustment Range: 12V DC - 15V DC
- Ripple & Noise (max.): <200mV
- Rated Power: 48W
- Voltage Tolerance: ±10%
- Line Regulation: <3% at 150VAC-240VAC
- Load Regulation: <10% at 150VAC-240VAC
- Setup Rise Time: 30ms max @ rated load (output voltage from 10% to 90%)
- Hold-Up Time (Typ.): 30ms max @ full load & 230VAC input turn off
- Temperature Coefficient: Max 75°C
- Start Time: 30ms max @ rated load (output voltage from 10% to 90%)
- Frequency Range: 50Hz-60Hz
- Efficiency (Typ.): 70%
- AC Current (Typ.): 1.2A max @ max 100-240VAC input & full load
- Guard Time: Max 2 sec @ 150-240VAC at input & full load
- Inrush Current (Typ.): 50A max @ 240VAC input & full load
- Leakage Current: 0.008A max
- Over Voltage Protection: Supported
- Short-Circuit Protection: Supported (Auto Recovery)
- Overload Protection: Supported
- Withstand Voltage: Input (100-240)V AC / Output (12-15)V DC
- solation Resistance: 50MΩ min at primary to secondary with 500VDC test voltage
- Over Current Protection: Supported
- Working Temperature: -10°C to +45°C
- Storage Temperature: -40°C to +70°C
- Weight: 233.1 grams
- Working Humidity: 5% to 95%
- Dimensions: 154.7mm x 97.38mm x 32.90mm
-Body Type: Plastic ABS with fire protection
-LED Indicator: For power on
-Power Cord: Included
