Product Detail
4G/5G WIRELESS ROUTER WIFI-6

UV-R0804-PRO

4G/5G WIRELESS ROUTER WIFI-6

Rating:

Rating:

UNIWORLD VISION PVT LTD

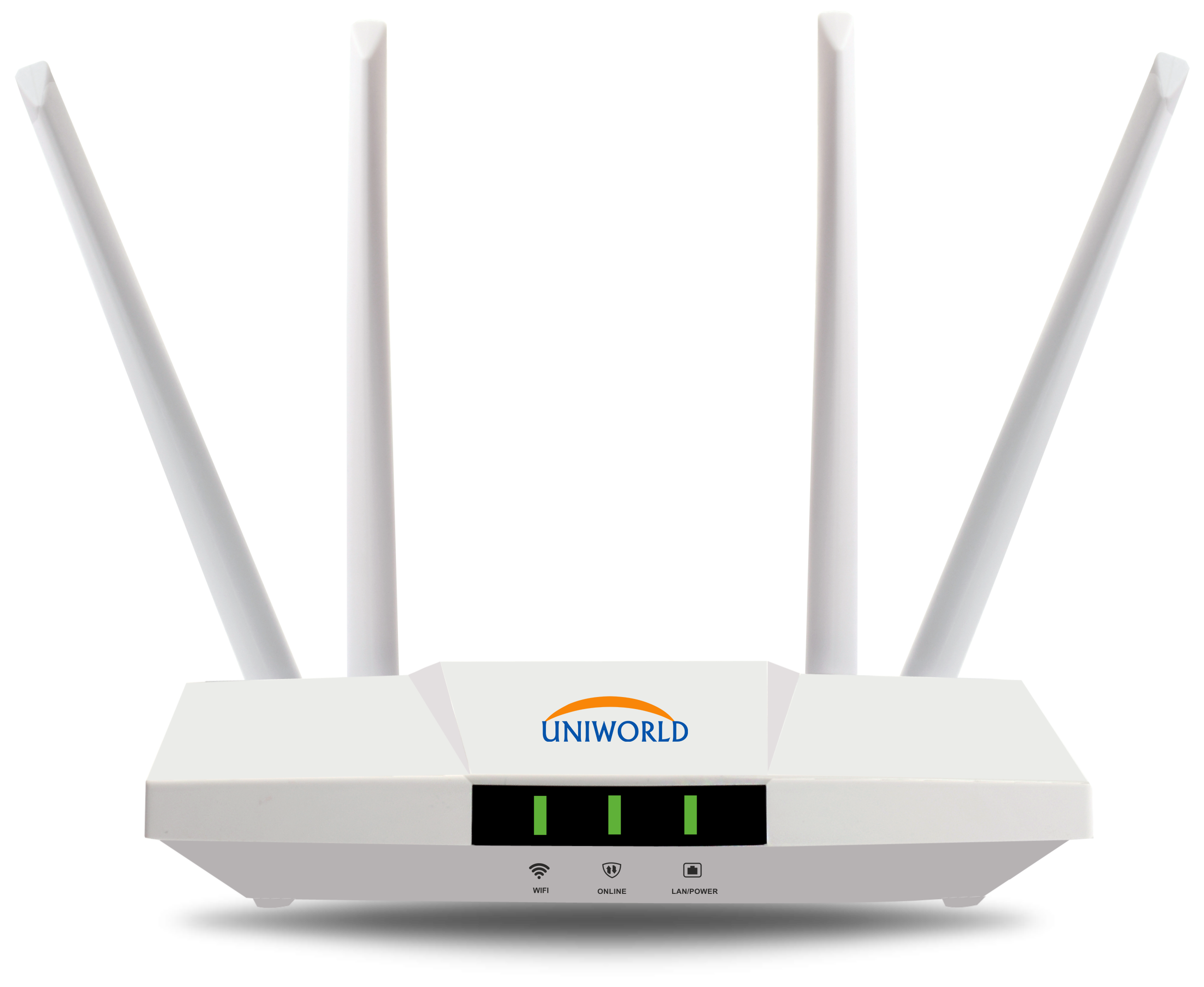

WiFi 6 Wireless Router
Model No: UV-R0804-PRO


Feature Specifications

Category Specifications
Hardware Specifications
Standard Compatible with WCDMA, FDD-LTE, TDD-LTE
Frequency Bands LTE: B1/3/5/8/38/39/40/41 ; WCDMA: B1/5/8
Wi-Fi Standard 2.4GHz, 802.11 b/g
Wi-Fi Users Supports up to 8 simultaneous users
Wi-Fi Mode Station Mode
4G Category LTE CAT 4
Max 4G Speed (DL/UL) 150Mbps/50Mbps
SMS Support Yes
Yes
Data Statistics Supported
SIM Lock Feature Supported
HTTP & DMZ Support Yes
LED Indicators System/Wi-Fi Indication LED, LTE/Internet Status, Interface Status LED, Ethernet & Signal Strength
Antenna External
Buttons Reset/WPS
Ethernet Ports 1 LAN, 10BaseT/100Base, automatic adaptive port
Power Consumption <10W
Color White
Dimensions 150mm x 101mm x 35mm (or 150mm x 101mm x 40mm with external antenna)
Weight Approximately 200g
Software Specifications
Wi-Fi Security OPEN, WPA-PSK, WPA2-PSK
Working Environment
Operating Temperature -10°C to +65°C
Storage Temperature -20°C to +85°C
Humidity 5%~95%
Other Features
Reset Button Pinhole Reset
ESD Protection Contact ±8KV, Air ±10KV
Power Voltage DC1800mA2V/
Price: RS 0
RS 0.00
Discount: RS 0
Quantity:
- +
