Product Detail

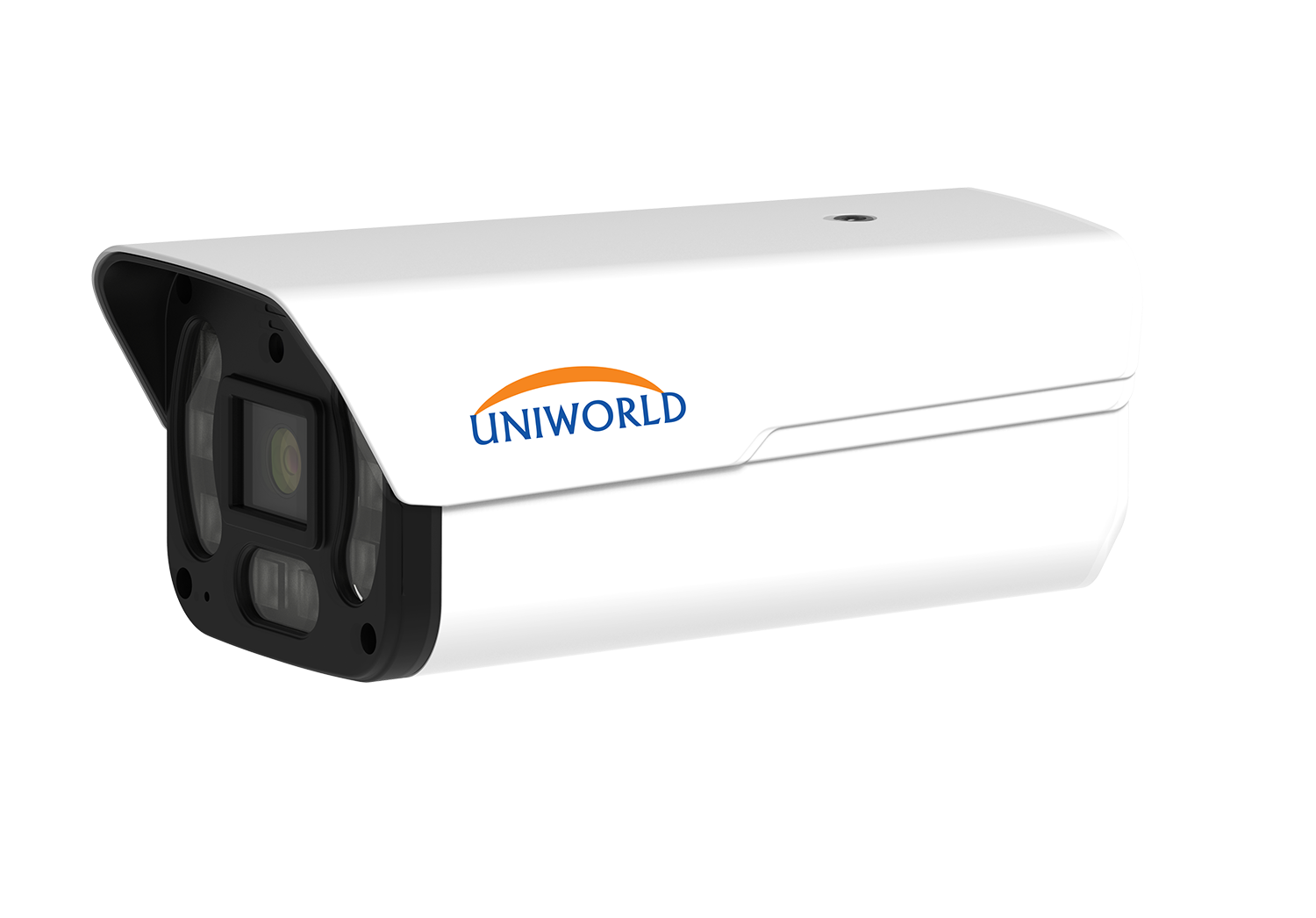

4MP IP PROJECT SERIES BULLET CAMERA

UV-IPC-TA40T3PW

4MP IP PROJECT SERIES BULLET CAMERA

Rating:

Rating:

4MP Network Bullet Camera (IR Color)

CategorySpecification
Image1/3" Progressive Scan CMOS
Resolution2560 x 1440P
Min. Illumination0.001 Lux @ (F2.0, AGC ON), 0 Lux with white light
Shutter Speed1/3 to 1/100,000 sec
Angle AdjustmentPan: 0-360°, Tilt: 0-90°, Rotate: 0-360°
Lens4mm Fixed Lens, FOV: H-75.2°, V-40.8°, D-88.3°
Lens MountM12
IlluminatorSmart Supplement White Light
IR RangeUp to 40m
Supplement Light RangeUp to 30m
Video CompressionH.265
Main Stream25 fps (2560x1440, 1920x1080)
Sub Stream25 fps (640x360)
Bit Rate32 kbps to 8 Mbps
Audio CompressionG.711 a/AAC
Audio Sampling Rate64 Kbps (G.711a-law), 8 kHz
Network ProtocolsTCP/IP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, RTCP, NTP, IGMP, IPv6, IPv4, UDP, SSL/TLS
Simultaneous Live ViewUp to 5 channels
Price: RS 0
RS 0.00
Discount: RS 0
Quantity:
- +
DATASHEET
Quantity:
- +

4MP Network Bullet Camera (IR Color)

Category Specification
Image 1/3" Progressive Scan CMOS
Resolution 2560 x 1440P
Min. Illumination 0.001 Lux @ (F2.0, AGC ON), 0 Lux with white light
Shutter Speed 1/3 to 1/100,000 sec
Angle Adjustment Pan: 0-360°, Tilt: 0-90°, Rotate: 0-360°
Lens 4mm Fixed Lens, FOV: H-75.2°, V-40.8°, D-88.3°
Lens Mount M12
Illuminator Smart Supplement White Light
IR Range Up to 40m
Supplement Light Range Up to 30m
Video Compression H.265
Main Stream 25 fps (2560x1440, 1920x1080)
Sub Stream 25 fps (640x360)
Bit Rate 32 kbps to 8 Mbps
Audio Compression G.711 a/AAC
Audio Sampling Rate 64 Kbps (G.711a-law), 8 kHz
Network Protocols TCP/IP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, RTCP, NTP, IGMP, IPv6, IPv4, UDP, SSL/TLS
Simultaneous Live View Up to 5 channels
Web Browser Support Chrome, Firefox, Edge (Latest Versions)
Image Settings Brightness, Sharpness, Contrast, Saturation, 3D Noise Reduction, Exposure Compensation, Red & Blue Gain
Day/Night Switching Auto, Schedule, Manual
Wide Dynamic Range (WDR) Yes
Enhancement Features BLC, 3D DNR
Ethernet Interface 1 x RJ45 (10M/100M Adaptive)
On-board Storage Micro SD Card (Up to 256GB)
Built-in Microphone & Speaker Yes
Hardware Reset Yes
Basic Events Motion Detection, Sound Detection, Human Shape Detection
Smart Events Alert Alarm, Area Alert, Period Setting
Linkage Upload to Memory Card/Cloud, Notify Surveillance Center, Trigger Recording/Capture
Operating Conditions -30°C to 55°C, 95% Humidity (Non-Condensing)
Storage Conditions -30°C to 55°C, 95% Humidity (Non-Condensing)
Protection Rating IP67
General Functions Voice Intercom, Video Recording, Playback, Photo Album, Cloud Service, Device Sharing, System Messaging
Power Supply PoE (802.3af, Class 3, 48V, 0.3A), DC 12V 1A
Max Power Consumption 14.4W
