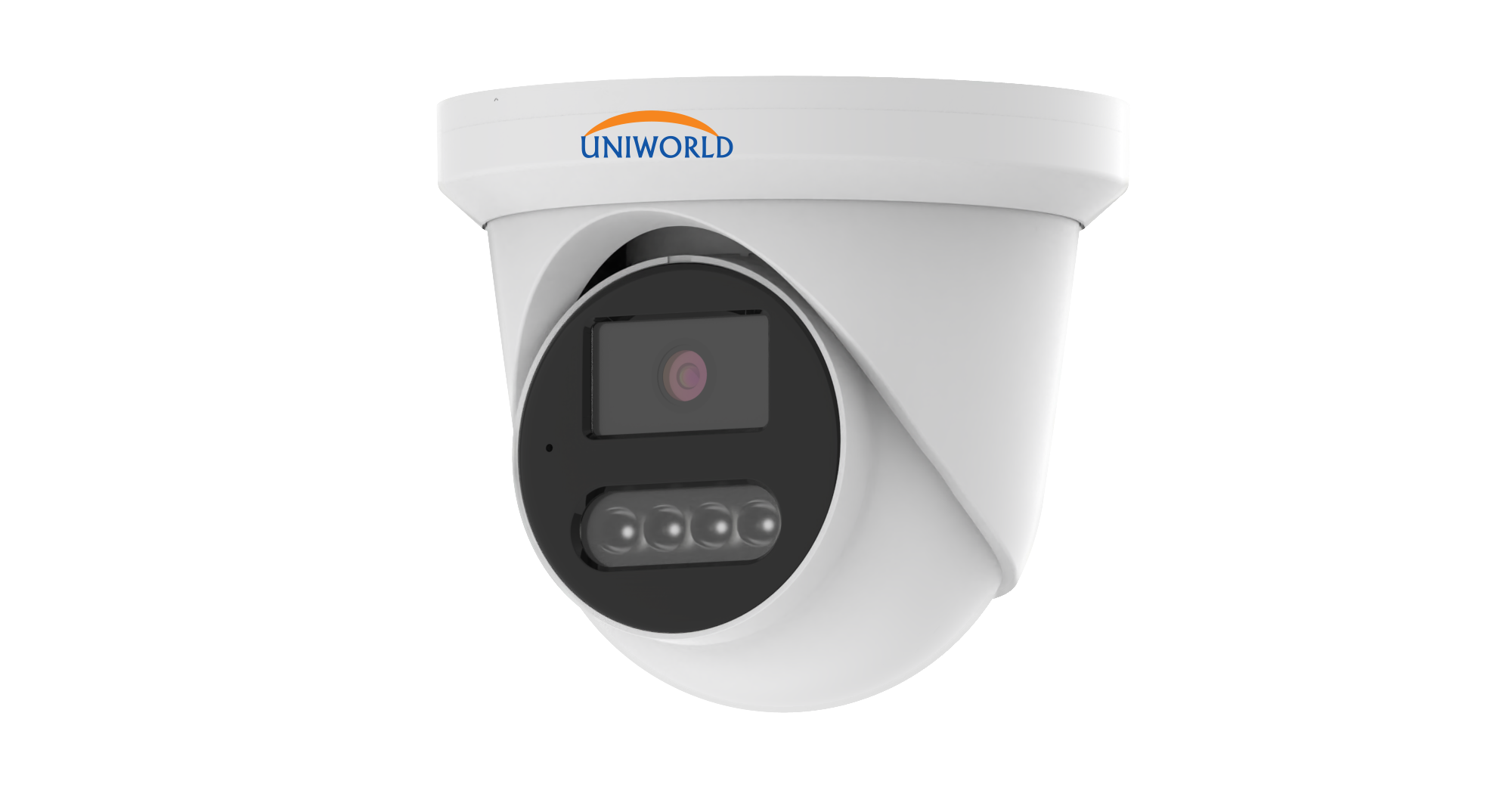

4MP Network Dome Camera
UV-IPC-DA40T3PW
Feature | Details |
---|---|
Image Sensor | 1/3” Progressive Scan CMOS |
Resolution | 2560 × 1440 (4MP) |
Min. Illumination | 0.001 Lux @ (F2.0, AGC ON), 0 Lux with white light |
Shutter Speed | 1/3 to 1/100,000 s |
Lens | 4mm Fixed Lens, M12 Mount |
Field of View (FOV) | Horizontal: 75.2°, Vertical: 40.8°, Diagonal: 88.3° |
Illumination | Smart Supplement White Light |
IR Range | Up to 40m |
White Light Range | Up to 30m |
Video Compression | H.265 |
Main Stream | 25 fps (2560 × 1440, 1920 × 1080) |
Sub Stream | 25 fps (640 × 360) |
Video Bit Rate | 32 kbps to 8 Mbps |
Audio | Built-in Mic & Speaker, G.711a/AAC Compression |
Audio Sampling Rate | 64 kbps (G.711a-law), 8 kHz |
Network Protocols | TCP/IP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, RTCP, NTP, IGMP, 802.1X, IPv4, IPv6, UDP, SSL/TLS |
Simultaneous Live View | Up to 5 channels |
Image Settings | Brightness, Sharpness, Color, Contrast, Saturation, 3D DNR, Exposure Compensation |
Day/Night Mode | Auto, Day, Night, Schedule |
WDR & Image Enhancement | Yes (BLC, 3D DNR) |
Ethernet Interface | RJ45 10M/100M Adaptive Ethernet Port |
On-board Storage | Supports Micro SD Card (up to 256GB) |
Protection Rating | IP67 |
Smart Features | Human Shape Detection, Motion Detection, Sound Detection, Alert Alarm |
Event Linkage | Upload to Memory Card/Cloud, Notify Surveillance Center, Trigger Recording & Capture |
Operating Conditions | -30°C to 55°C (-22°F to 131°F), Humidity ≤ 95% (Non-condensing) |
Power Supply | PoE (802.3af, Class 3, 48V, 0.3A Max 14.4W) or 12V DC, 1A |
Additional Functions | Voice Intercom, Video Recording, Playback, Photo Album, Cloud Service, Watermark, System Messaging |
