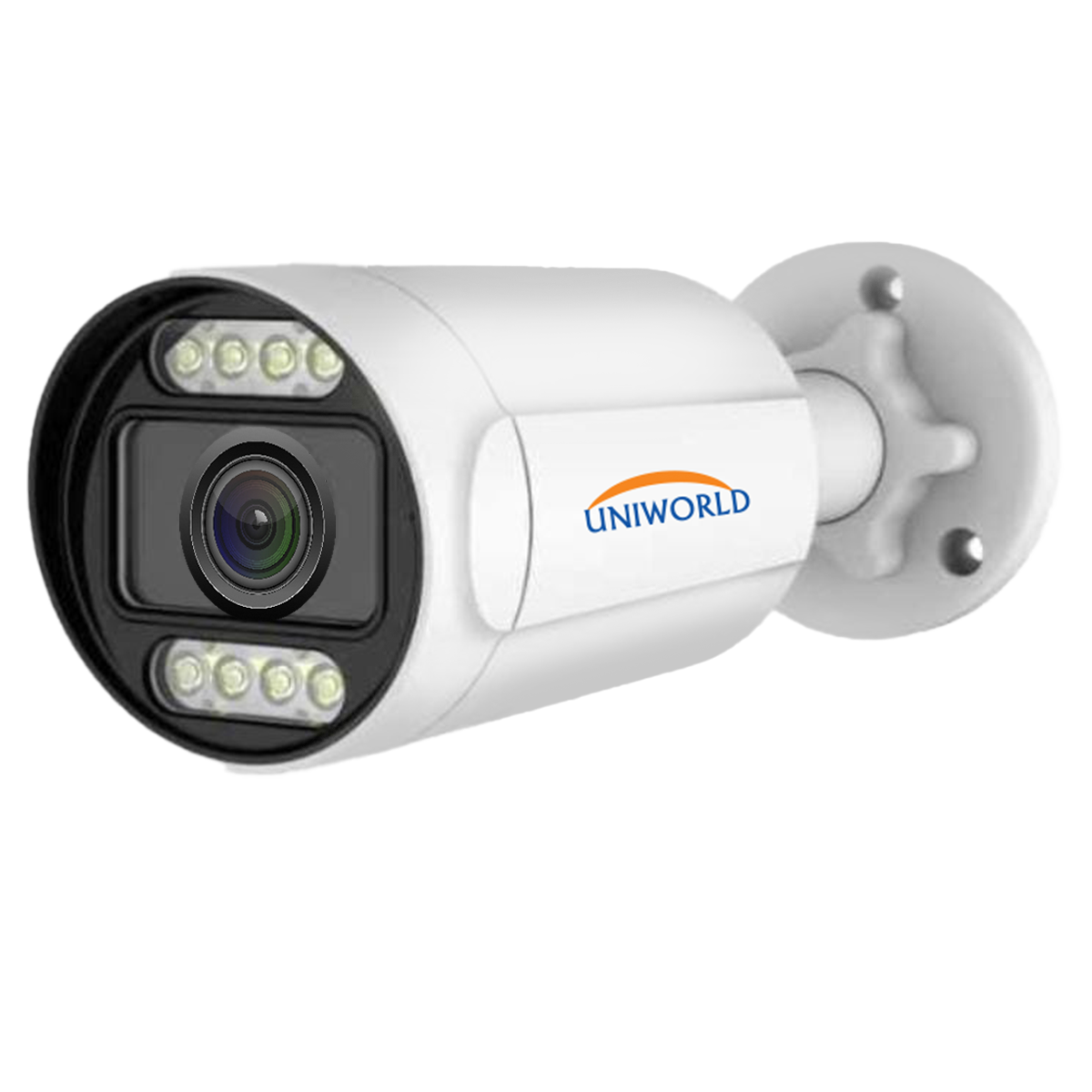

5MP IP VARI-FOCAL NETWORK BULLET CAMERA – 50Mtr

UV-IPC-PRO-TA50VFL-CA

5MP IP VARI-FOCAL NETWORK BULLET CAMERA – 50Mtr

Rating:

Rating:

Specifications:

Camera

Model No. UV-IPC-PRO-TA50VFL-CA
Sensor 1/2.7" 5MP Low Illumination CMOS Sensor
Lens 12mm Vari-Focal Lens
D&N ICR switch (Auto/Color/B&W/CDS Trigger/Custom Time)
IR LED Control Auto/Manual/Off, Adjustable Brightness (0-100)
IR Distance 50 meters
3D DNR Off/Low/Middle/High
D-WDR Off/Low/Middle/High/Higher
Defog Off/Low/Middle/High
Mirror Off/Horizontal/Vertical/180° Flip

Humanoid Detection

Model No. Z55D
Detection Frame Rate 5fps
Max Detection 5 persons simultaneously
Humanoid Size Pixel ≥ 40x40
Detection Ratio 299% (meeting requirements)
Capture Speed 15fps
Fault Detection Ratio 2%
Track People Supported
Detection Mode Static & Dynamic Detection
Detection Area Configurable (Default: Full-Screen)
Upload Method Private Protocol
Trigger Method Video Trigger

Audio & Video Encoding

Feature Specification
Standard Smart265, H.265, H.264
Main Stream 5MP(25921904@20fps), 4MP (25601920@25fps), 3MP (23041296@25fps), 2MP (19201080@25fps)
Sub Stream D1(720576), VGA(640480), Q720P(640360), CIF(352288), QVGA(320*240)
Max Resolution 5MP (2592*1904)
Video Code Rate 160Kbps - 4000Kbps (Fixed & Variable)
Audio Standard G.711u/G.711A 64Kbps

Network & Security

Feature Specification
Network Protocols TCP/IP, UDP, HTTP, HTTPS, DHCP, RTSP, DDNS, NTP, PPPOE, UPNP, SMTP
Connection Protocols Slink, Onvif, GB28181 (Optional)
Security Mode Username/Password, HTTPS, AES Encryption, RTSP Verification
Motion Detection 4 configurable areas
Privacy Masking 4 configurable areas
Alarm Notifications Snapshot, Email, Network Failure, IP Conflict, Unauthorized Access
OSD Overlay Title, Time, Date (Multi-line & Color Options)

Ports & Connectivity

Feature Specification
Network Port RJ45 10M/100M Self-adaptive
Audio Port MIC Input/Output
IO Ports 10 Ports (TF card, 1 Input, 2 Output Alarm, Reset, RS485)
USB Port Supports USB WiFi/4G Module
Price: RS 0
RS 0.00
Discount: RS 0
Quantity:
- +
DATASHEET
Quantity:
- +

Specification . Request For Information

Specifications:

Camera

Model No.UV-IPC-PRO-TA50VFL-CA
Sensor1/2.7" 5MP Low Illumination CMOS Sensor
Lens12mm Vari-Focal Lens
D&NICR switch (Auto/Color/B&W/CDS Trigger/Custom Time)
IR LED ControlAuto/Manual/Off, Adjustable Brightness (0-100)
IR Distance50 meters
3D DNROff/Low/Middle/High
D-WDROff/Low/Middle/High/Higher
DefogOff/Low/Middle/High
MirrorOff/Horizontal/Vertical/180° Flip

Humanoid Detection

Model No.Z55D
Detection Frame Rate5fps
Max Detection5 persons simultaneously
Humanoid SizePixel ≥ 40x40
Detection Ratio299% (meeting requirements)
Capture Speed15fps
Fault Detection Ratio2%
Track PeopleSupported
Detection ModeStatic & Dynamic Detection
Detection AreaConfigurable (Default: Full-Screen)
Upload MethodPrivate Protocol
Trigger MethodVideo Trigger

Audio & Video Encoding

FeatureSpecification
StandardSmart265, H.265, H.264
Main Stream5MP(25921904@20fps), 4MP (25601920@25fps), 3MP (23041296@25fps), 2MP (19201080@25fps)
Sub StreamD1(720576), VGA(640480), Q720P(640360), CIF(352288), QVGA(320*240)
Max Resolution5MP (2592*1904)
Video Code Rate160Kbps - 4000Kbps (Fixed & Variable)
Audio StandardG.711u/G.711A 64Kbps

Network & Security

FeatureSpecification
Network ProtocolsTCP/IP, UDP, HTTP, HTTPS, DHCP, RTSP, DDNS, NTP, PPPOE, UPNP, SMTP
Connection ProtocolsSlink, Onvif, GB28181 (Optional)
Security ModeUsername/Password, HTTPS, AES Encryption, RTSP Verification
Motion Detection4 configurable areas
Privacy Masking4 configurable areas
Alarm NotificationsSnapshot, Email, Network Failure, IP Conflict, Unauthorized Access
OSD OverlayTitle, Time, Date (Multi-line & Color Options)

Ports & Connectivity

FeatureSpecification
Network PortRJ45 10M/100M Self-adaptive
Audio PortMIC Input/Output
IO Ports10 Ports (TF card, 1 Input, 2 Output Alarm, Reset, RS485)
USB PortSupports USB WiFi/4G Module
