Features and Specifications
Feature | Details |
---|---|
Compression Format | H.265/H.264 |
Chipset | T41NQ |
Human Tracking Algorithm | Embedded, detects 5-10 people simultaneously under complicated environments |
Detection Capabilities | Human and vehicle detection, voice-light alert, and frame drawing for appointed areas |
Smart Analysis Functions | Area Intrusion, Line-Crossing Detection, Loitering, Absent Alarm, Vehicle Illegal Parking, Vehicle Retrograde |
Max BMP Resolution | 3840x2160 |
Built-in Amplifier Board | Yes |
Two-way Audio Intercom | Yes |
Voice Light Broadcast | Yes |
D-WDR & 3D DNR | Yes |
Light Modes | Dual light, warm light, infrared CDS or sensor trigger |
Onvif Support | Yes |
PoE (Power over Ethernet) | Optional |
Infrared Over-exposure Prevention | Smart IR support |
ICR Auto Switch | Yes, supports auto/color/B&W/CDS trigger/customized time |
Low Consumption & Low Latency | Yes |
Encryption Support | HTTPS encryption, AES connection encryption, RTSP verification |
Camera Specifications
Specification | Details |
---|---|

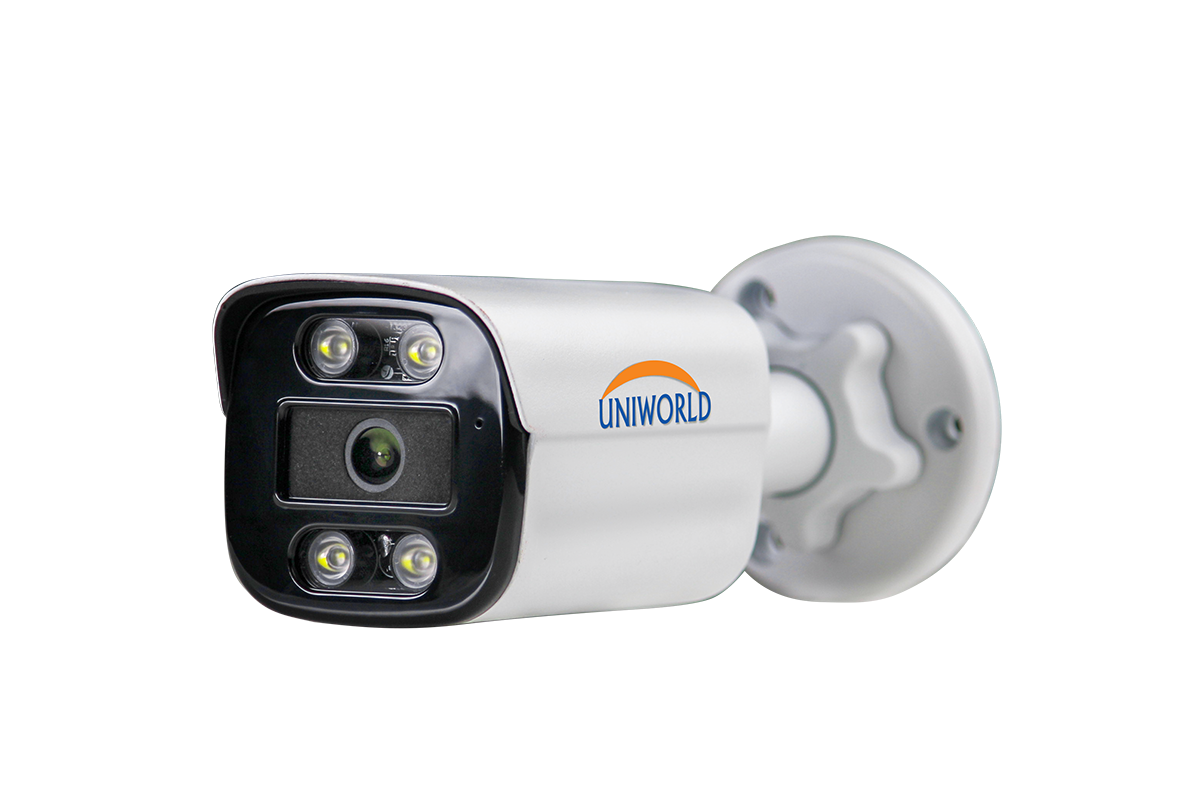

Model | AI-88A |
Chipset | T41NQ |
Sensor | 1/2.7" 8MP low illumination CMOS sensor |
Lens Type | Fixed and varifocal lens support |
IR LED Control | IR/Warm/Dual light, auto/manual/off, brightness adjustment 0-100% |
Defog & Mirror Support | Off/Low/Middle/High settings, horizontal/vertical mirror & 180° flip |
Detection & Alarms
Features and Specifications
Feature | Details |
---|---|
Compression Format | H.265/H.264 |
Chipset | T41NQ |
Human Tracking Algorithm | Embedded, detects 5-10 people simultaneously under complicated environments |
Detection Capabilities | Human and vehicle detection, voice-light alert, and frame drawing for appointed areas |
Smart Analysis Functions | Area Intrusion, Line-Crossing Detection, Loitering, Absent Alarm, Vehicle Illegal Parking, Vehicle Retrograde |
Max BMP Resolution | 3840x2160 |
Built-in Amplifier Board | Yes |
Two-way Audio Intercom | Yes |
Voice Light Broadcast | Yes |
D-WDR & 3D DNR | Yes |
Light Modes | Dual light, warm light, infrared CDS or sensor trigger |
Onvif Support | Yes |
PoE (Power over Ethernet) | Optional |
Infrared Over-exposure Prevention | Smart IR support |
ICR Auto Switch | Yes, supports auto/color/B&W/CDS trigger/customized time |
Low Consumption & Low Latency | Yes |
Encryption Support | HTTPS encryption, AES connection encryption, RTSP verification |
Camera Specifications
Specification | Details |
---|---|
Model | AI-88A |
Chipset | T41NQ |
Sensor | 1/2.7" 8MP low illumination CMOS sensor |
Lens Type | Fixed and varifocal lens support |
IR LED Control | IR/Warm/Dual light, auto/manual/off, brightness adjustment 0-100% |
Defog & Mirror Support | Off/Low/Middle/High settings, horizontal/vertical mirror & 180° flip |
Detection & Alarms
Feature | Details |
---|---|
Motion Detection | Day/Night arming, customizable arm time by week (4 time periods per day), full screen/area detection |
Occlusion Alarm | Supports 1 detection area |
Privacy Mask | Supports 4 areas |
Area Intrusion Detection | Multi-deformation detection area (6 points), video stream overlay detection frame, specified target type detection (human, motor vehicle, non-motor vehicle) |
Line-Crossing Detection | One detection line, supports detection directions (A->B) |
Loitering Detection | Multi-deformation detection area, loitering time setting (10-3600s) |
Absent Alarm | Detection area (6 points), absent time setting (10-3600s), support for 1-3 people on duty |
Vehicle Illegal Parking | Detection area (6 points), illegal parking time setting (10-3600s) |
Vehicle Retrograde | Supports 4 detection directions, detection line support (B->A) |
Alarm Linkage | Email upload, voice broadcast alarm, alarm light |
Audio & Video Encoding
Feature | Details |
---|---|
Video Encoding Standard | S265/H.265/H.264 |
Max Resolution | 8MP (3840x2160) |
Main Stream (PAL) | 8MP(3840x2160@25fps), 5MP(2592x1904@25fps), 4MP(2560x1440@25fps), 3MP(2304x1296@25fps), 2MP(1920x1080@25fps) |
Main Stream (NTSC) | 8MP(3072x2048@25fps), 5MP(2592x1904@25fps), 4MP(2560x1440@25fps), 3MP(2304x1296@25fps), 2MP(1920x1080@25fps) |
Sub-stream (PAL) | D1(720x576@25fps), VGA(640x480@25fps), Q720P(640x360@25fps) |
Sub-stream (NTSC) | D1(720x576@30fps), VGA(640x480@30fps), Q720P(640x360@30fps) |
Video Code Rate | Fixed code rate, variable code rate |
Audio Standard | G.711u/G.711A 8K 64bit |
Network & Security
Feature | Details |
---|---|
Network Protocols | TCP/IP, UDP, HTTP, HTTPS, DHCP, PPPOE, RTSP, RTMP, DDNS, UPNP, FTP |
Connection Protocols | Onvif/18H/HIK Protocol/TST Protocol |
Security Modes | Authorized username & password, HTTPS encryption, AES encryption, RTSP verification |
RJ45 Network Port | 10M/100M network self-adaptation |
General Features
Feature | Details |
---|---|
Arming Time | Supports day/night/customized arming |
Device Abnormal Inspection | Supports disconnection alarm, IP conflict alarm, illegal access alarm |
Character Overlay (OSD) | Time OSD, Title OSD, multi-line OSD (two lines) |
Font Support | Main stream (12-60pt), Sub-stream (12-36pt) |
Microphone Input/Output | Yes, built-in amplifier |
This table provides a structured overview of the AI Smart Analysis IP module's features and specifications for easy reference.
