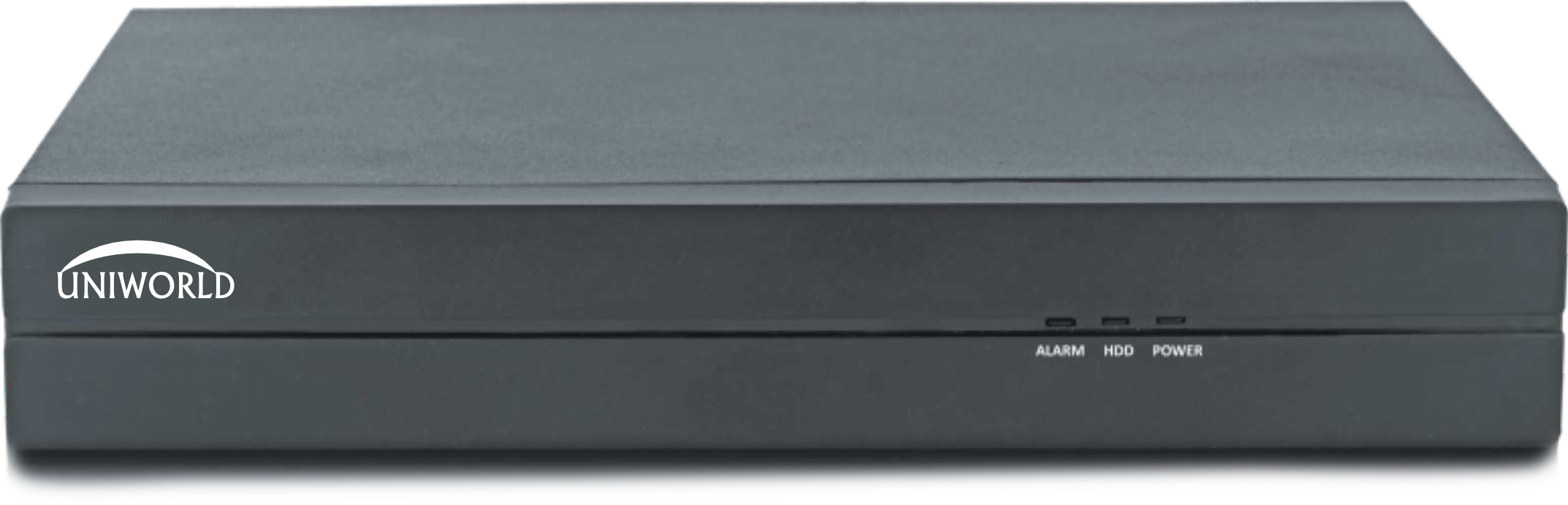

DVR 16CH 1080

UV-DVR-1016F

DVR 16CH 1080

Rating:

Rating:

ProcessorIndustrial-Grade Processor
Analog Camera Input16 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect
User InterfaceWeb; Local GUI
IP Camera InputUp to 32 channels of IPC access 16 IP channels by default + 16 channels (analog channels are converted to IP channels) incoming bandwidth: 128 Mbps, recording bandwidth: 128 Mbps and outgoing bandwidth: 128 Mbps *After IP channels are added beyond the existing channels, the AI Function (IVS, SMD, FACE) will be disabled
Operating SystemEmbedded Linux
Camera Input1. CVI: 4K@25/30 fps; 6 MP@20 fps; 5 MP@20 fps; 5 MP@25 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps; 720p@50/60 fps.2. TVI: 4K@15 fps; 5 MP@20 fps; 4 MP@25/30 fps; 3 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps.3. AHD: 4K@15 fps; 5 MP@20 fps; 4 MP@25/30 fps; 3 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30fps
Two-way TalkSupport (share the same audio input with the first channel)
Video Output1 HDMI, 1 VGA HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 *Simultaneous/heterogeneous video sources output for VGA and HDMI is configurable
Face AttributesGender; Age group; Glasses; Expressions; Face mask; Beard
Video CompressionH.265+, H.265, H.264
Frame RateMain stream: 4K@(1fps-10fps); 6 MP@(1fps-10fps); 5 MP@(1fps-12fps); 4K-N, 4 MP, 3 MP@ (1fps-15fps); 4M-N, 1080p, 720p, 960H, D1,CIF@(1fps–25/30fps); Sub stream: 960H@(1fps– 15fps); D1/CIF@(1 fps– 25/30fps)
Encode StrategyAI Instastream/ Instastream
stream CapabilityDual Stream
Perimeter Performance of AI by DVR (Number of Channels)Advanced Model: 2 channels, 10 IVS for each channel General Model: 8 channels, 10 IVS for each channel
Face Detection Performance of AI by DVR (Number of Channels)2 Channels (up to 12 face images/s each channel)
Bit Rate32 kbps–6144 kbps
Audio Input1-channel RCA ,16-channel BNC (Coaxial Audio)
Audio Output1 Channel RCA
Audio CompressionG.711a; G.711u; PCM
Audio Sample Rate8 kHz, 16 bit
Hard Disk1 SATA port, up to 6TB capacity for each disk. The maximum HDD capacity varies with environment temperature.
Smart PhoneiPhone, iPad, Android Phone
Intelligent AlarmFace detection; Face recognition; Perimeter protection
Recording Playback1/4/9/16
BrowserChrome, IE9 or later, Firefox
Backup MethodUSB device and Network
PlaybackInstant playback, General playback, Event playback, Tag playback, Smart playback (face and motion detection)
Interface Ports1 HDMI, 1 VGA, 1 RS485, 2 USB Ports( (1 front USB 2.0 port, 2 rear USB 3.0 port)
Network ModeSingle-address mode
Ethernet1 RJ-45 Port ((10/100/100Mbps)
ProtocolsHTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; ONVIF 22.12(Profile T; Profile S; Profile G); CGI; SDK
Power SupplyDC12V, 1.5Amp
Power Consumption<15W (Without HDD)
Operating Temperature-10 ~+50°C
Operating Humidity10%–90% (RH)
Dimension325 mm × 257.1 mm × 55.0 mm
Weight1.5Kg
Price: RS 0
RS 0.00
Discount: RS 0
Quantity:
- +
DATASHEET
Quantity:
- +

Specification . Request For Information

ProcessorIndustrial-Grade Processor
Analog Camera Input16 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect
User InterfaceWeb; Local GUI
IP Camera InputUp to 32 channels of IPC access 16 IP channels by default + 16 channels (analog channels are converted to IP channels) incoming bandwidth: 128 Mbps, recording bandwidth: 128 Mbps and outgoing bandwidth: 128 Mbps *After IP channels are added beyond the existing channels, the AI Function (IVS, SMD, FACE) will be disabled
Operating SystemEmbedded Linux
Camera Input1. CVI: 4K@25/30 fps; 6 MP@20 fps; 5 MP@20 fps; 5 MP@25 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps; 720p@50/60 fps.2. TVI: 4K@15 fps; 5 MP@20 fps; 4 MP@25/30 fps; 3 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps.3. AHD: 4K@15 fps; 5 MP@20 fps; 4 MP@25/30 fps; 3 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30fps
Two-way TalkSupport (share the same audio input with the first channel)
Video Output1 HDMI, 1 VGA HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 *Simultaneous/heterogeneous video sources output for VGA and HDMI is configurable
Face AttributesGender; Age group; Glasses; Expressions; Face mask; Beard
Video CompressionH.265+, H.265, H.264
Frame RateMainstream: 4K@(1fps-10fps); 6 MP@(1fps-10fps); 5 MP@(1fps-12fps); 4K-N, 4 MP, 3 MP@ (1fps-15fps); 4M-N, 1080p, 720p, 960H, D1, CIF@(1fps–25/30fps); Sub stream: 960H@ (1fps– 15fps); D1/CIF@ (1 fps– 25/30fps)
Encode StrategyAI Interstream/ Interstream
stream CapabilityDual Stream
Perimeter Performance of AI by DVR (Number of Channels)Advanced Model: 2 channels, 10 IVS for each channel General Model: 8 channels, 10 IVS for each channel
Face Detection Performance of AI by DVR (Number of Channels)2 Channels (up to 12 face images/s each channel)
Bit Rate32 kbps–6144 kbps
Audio Input1-channel RCA ,16-channel BNC (Coaxial Audio)
Audio Output1 Channel RCA
Audio CompressionG.711a; G.711u; PCM
Audio Sample Rate8 kHz, 16 bit
Hard Disk1 SATA port, up to 6TB capacity for each disk. The maximum HDD capacity varies with environment temperature.
Smart PhoneiPhone, iPad, Android Phone
Intelligent AlarmFace detection; Face recognition; Perimeter protection
Recording Playback1/4/9/16
BrowserChrome, IE9 or later, Firefox
Backup MethodUSB device and Network
PlaybackInstant playback, General playback, Event playback, Tag playback, Smart playback (face and motion detection)
Interface Ports1 HDMI, 1 VGA, 1 RS485, 2 USB Ports((1 front USB 2.0 port, 2 rear USB 3.0 port)
Network ModeSingle-address mode
Ethernet1 RJ-45 Port ((10/100/100Mbps)
ProtocolsHTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; ONVIF 22.12(Profile T; Profile S; Profile G); CGI; SDK
Power SupplyDC12V, 1.5Amp
Power Consumption<15W (Without HDD)
Operating Temperature-10 ~+50°C
Operating Humidity10%–90% (RH)
Dimension325 mm × 257.1 mm × 55.0 mm
Weight1.5Kg
