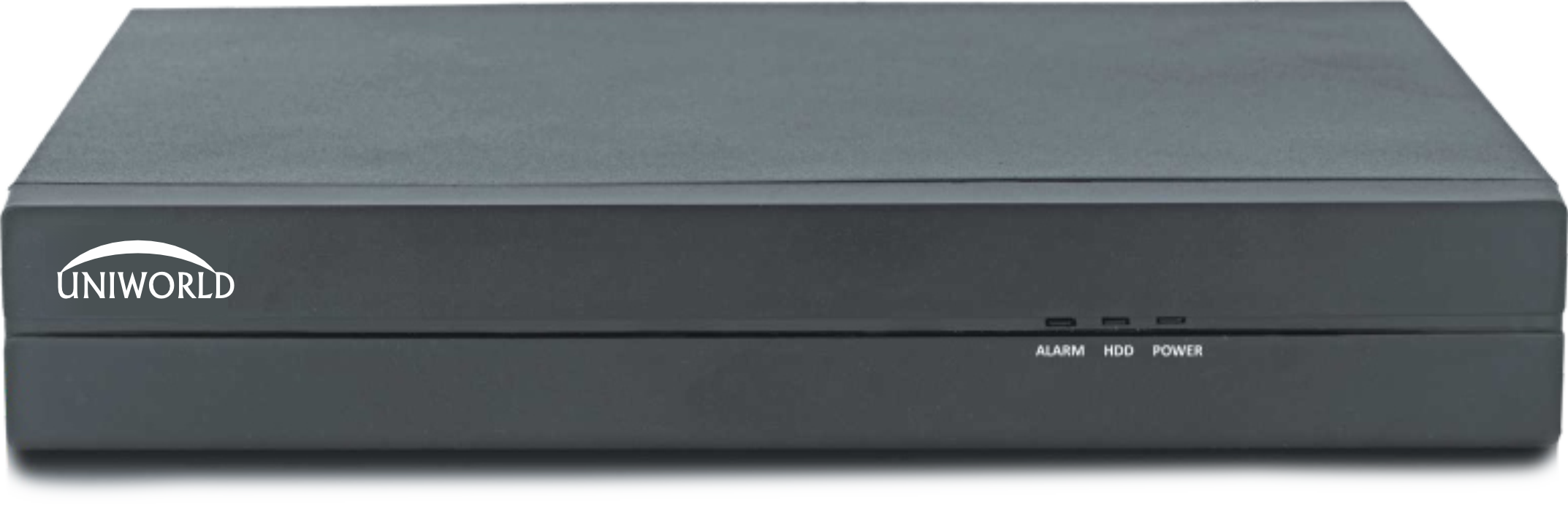

DVR 8CH 1080F

UV-DVR-1008F

DVR 8CH 1080F

Rating:

Rating:

ProcessorIndustrial-grade processor
Operating SystemEmbedded LINUX
Analog Camera Input8 channels, BNC: adaptive access by default HDCVI, AHD, TVI and CVBS access can be configured
Camera Input1. CVI: 5 MP, 4 MP, 1080p@25/30 fps, 720p@50/60 fps, 720p@25/3 0fps. 2. TVI: 5 MP, 4 MP, 1080p@25/30 fps, 720p@25/30 fps. 3. AHD: 5 MP, 4 MP, 1080p@25/30 fps, 720p@25/30 fps. 4. CVBS: PAL/NTSC
IP Camera InputUp to 12 channels of IPC access 4 IP channels by default + 8 channels (analog channels are converted to IP channels) incoming bandwidth: 64 Mbps, recording bandwidth: 64 Mbps and outgoing bandwidth: 64 Mbps After IP channels are added beyond the existing channels, the AI Function (SMD) will be disabled
User InterfaceWeb; GUI
Video Input08 channel, BNC
Video Output1 HDMI, 1 VGA HDMI/VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
SMD Plus by NVR8-channel: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change
Video CompressionH.265+, H.264+, H.264
Encoding CapacityMainstream: All channel 5M-N@ (1 fps–10 fps), 4M-N/1080p@ (1 fps– 15 fps) 1080N/ 720p/960H/D1/CIF@(1 fps–25/30 fps), Sub stream: D1/CIF (1 fps–15 fps
Encode StrategyAI Interstream, Interstream
Network ModeSingle-address mode
Video Display SplitWhen IP extension mode not enabled: 1/4/8/9/16, When IP extension mode enabled: 1/4/8/9/16
Bit Rate32 kbps–6144 kbps
Audio CompressionG.711A, G.711U, PCM
Smart PhoneiPhone, iPad, Android Phone
Audio Sample Rate8 KHz, 16 bit per channel
Audio Bit Rate64 kbps per channel
General AlarmMotion detection, video loss, tampering
Alarm LinkageRecord, snapshot (panoramic) local alarm output, IPC external alarm output, access controller, audio, buzzer, log, preset, email
BrowserChrome IE9 or later Firefox
Recording PlaybackInstant playback, general playback, event playback, tag playback
Playback1/4/8/9 Ch.
Backup ModeUSB Device/Network
Interface Ports2 USB Ports (2.0)
Ethernet1 (10/100 Mbps Ethernet port, RJ-45)
ProtocolsHTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, FTP, ONVIF 21.06; CGI Conformant
Power SupplyDC12V/15A
Power Consumption<7 W
Operating Temperature–10 °C to +55 °C (+14 °F to +131 °F)
Operating Humidity0%–90% (RH)
Dimension198.3 mm × 203.4 mm × 41.5 mm
Weight0.57 kg without HDD
Price: RS 0
RS 0.00
Discount: RS 0
Quantity:
- +
DATASHEET
Quantity:
- +

Specification . Request For Information

ProcessorIndustrial-grade processor
Operating SystemEmbedded LINUX
Analog Camera Input8 channels, BNC: adaptive access by default HDCVI, AHD, TVI and CVBS access can be configured
Camera Input1. CVI: 5 MP, 4 MP, 1080p@25/30 fps, 720p@50/60 fps, 720p@25/3 0fps. 2. TVI: 5 MP, 4 MP, 1080p@25/30 fps, 720p@25/30 fps. 3. AHD: 5 MP, 4 MP, 1080p@25/30 fps, 720p@25/30 fps. 4. CVBS: PAL/NTSC
IP Camera InputUp to 12 channels of IPC access 4 IP channels by default + 8 channels (analog channels are converted to IP channels) incoming bandwidth: 64 Mbps, recording bandwidth: 64 Mbps and outgoing bandwidth: 64 Mbps After IP channels are added beyond the existing channels, the AI Function (SMD) will be disabled
User InterfaceWeb; GUI
Video Input08 channel, BNC
Video Output1 HDMI, 1 VGA HDMI/VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
SMD Plus by NVR8-channel: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change
Video CompressionH.265+, H.264+, H.264
Encoding CapacityMainstream: All channel 5M-N@ (1 fps–10 fps), 4M-N/1080p@ (1 fps– 15 fps) 1080N/ 720p/960H/D1/CIF@(1 fps–25/30 fps), Sub stream: D1/CIF (1 fps–15 fps
Encode StrategyAI Interstream, Interstream
Network ModeSingle-address mode
Video Display SplitWhen IP extension mode not enabled: 1/4/8/9/16, When IP extension mode enabled: 1/4/8/9/16
Bit Rate32 kbps–6144 kbps
Audio CompressionG.711A, G.711U, PCM
Smart PhoneiPhone, iPad, Android Phone
Audio Sample Rate8 KHz, 16 bit per channel
Audio Bit Rate64 kbps per channel
General AlarmMotion detection, video loss, tampering
Alarm LinkageRecord, snapshot (panoramic) local alarm output, IPC external alarm output, access controller, audio, buzzer, log, preset, email
BrowserChrome IE9 or later Firefox
Recording PlaybackInstant playback, general playback, event playback, tag playback
Playback1/4/8/9 Ch.
Backup ModeUSB Device/Network
Interface Ports2 USB Ports (2.0)
Ethernet1 (10/100 Mbps Ethernet port, RJ-45)
ProtocolsHTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, FTP, ONVIF 21.06; CGI Conformant
Power SupplyDC12V/15A
Power Consumption<7 W
Operating Temperature–10 °C to +55 °C (+14 °F to +131 °F)
Operating Humidity0%–90% (RH)
Dimension198.3 mm × 203.4 mm × 41.5 mm
Weight0.57 kg without HDD
